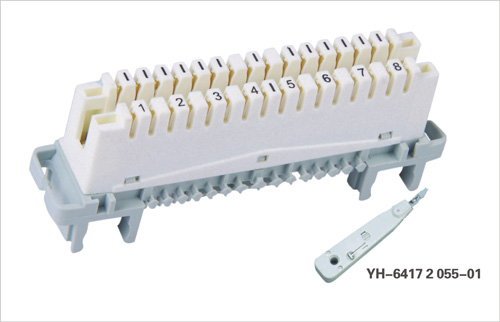

Krone LSA Connection And Disconnection Module 8 Pair Profile Type

8pair Profile LSA copper Wire Connection module For profile mounting bracket

Quick Detail:

1, Material: PBT or ABS(UL94V-0)

2, Contact: Phosphor Bronze

3, Silver Plating: 0.5 um1.25 um5 um

4, Can be installed on krone type stainless steel back mount frames

5, Available with 50pair block tag and 100pair block tag.

6, for mounting on MDF,racks,profile bracket,indoor and outdoor distribution box,cross connection cabinets.

Description:

The Terminal modules shall be mounted of high insulation low Moisture absorption,flame retardant,high impact strength material with high resistance to physical and solvent stresses.ABS or PBT material on option for production.

CT modules are desired.One connection type having contact elements(terminal tags)which permanently connects line side and jumper side.Another is disconnection tpye with the provision of disconnection facility in line side and jumper side by inserting test probe on the test access point.The two types of modulesare distinct from each other with colour.

We offer various modules in telecommunication application, the products includes 5pair LSA type connection and disconnection module, 8pair and 10 pair connection disconnection krone module,back mount function and profile function, switching module,10pair Earth connection module, high band modules, 3M type quick connect module, 25pair splicing module, 10pair STG module, Subscriber terminal block, 50pair and 100pair krone block tag, back-mount frames, and other related accessories like LSA patch cord for disconnection and switching modules,earth bar,dust cover,label holder and so on.

The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.

The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.

Applications:

High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.

Specifications :
